A vehicle tracking system combines the use of automatic vehicle location in individual vehicles with software that collects these fleet data for a comprehensive picture of vehicle locations. Modern vehicle tracking systems commonly use GPS or GLONASS technology for locating the vehicle, but other types of automatic vehicle location technology can also be used. Vehicle information can be viewed on electronic maps via the Internet or specialized software. Urban public transit authorities are an increasingly common user of vehicle tracking systems, particularly in large cities
GT06E 3G GPS tracker gives you the location of anything, Utilizing cutting-edge GPS technology.
GT06N Multifunctional Vehicle GPS Tracker combines various kinds of functions together..
OB22 is an easy to fit plug & play OBD port tracker with superior location, tracking, reporting...
GPS + LBS tracking Real-time tracking by APP, SMS and Web Platform Voice monitoring...
With the finest craftsmanship, GV20 is a fully-featured, highly competitive and cost-effective...
WeTrack2 (ET200) equipped with highly reliable electric circuit design, providing functions such..
Battery temperature monitoring Built-in thermal barrier to secure the battery's optimum ...
WeTrack2 (ET200) equipped with highly reliable electric circuit design, providing functions such...
GT08 is a new Vehicle Tracker based on the GSM/GPRS network and GPS satellite positioning...
BL10 GPS bike lock can be unlocked on your phone and allow you to get real-time location...
With JS40 4G Sharing E-scooter, you can start your awesome ride anytime. Powerful motor...
GT800 Vehicle GPS Tracker is a high-end multifunctional vehicle GPS tracker with solid ...

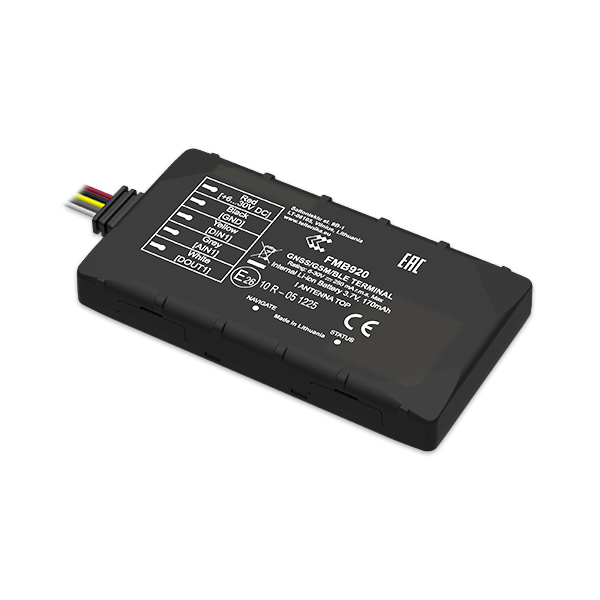

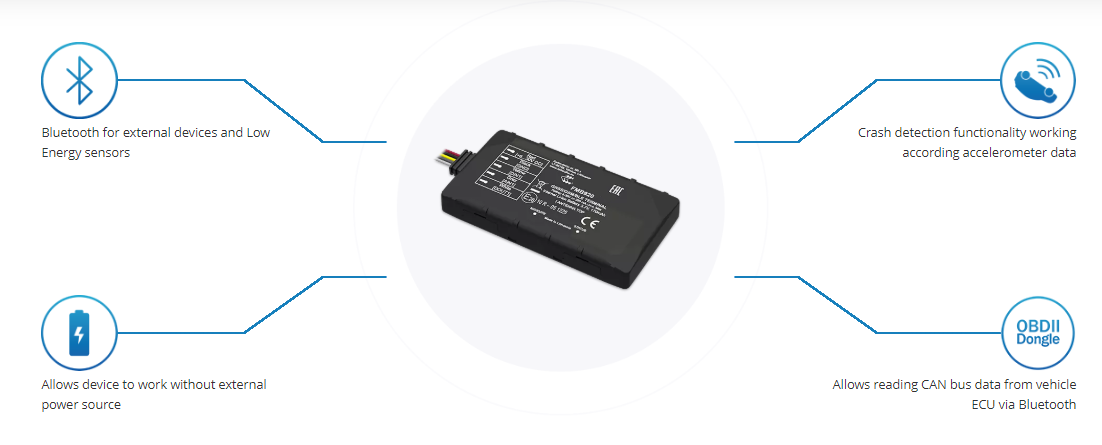

FMB920 is compact and smart tracker with Bluetooth connectivity, internal High ...

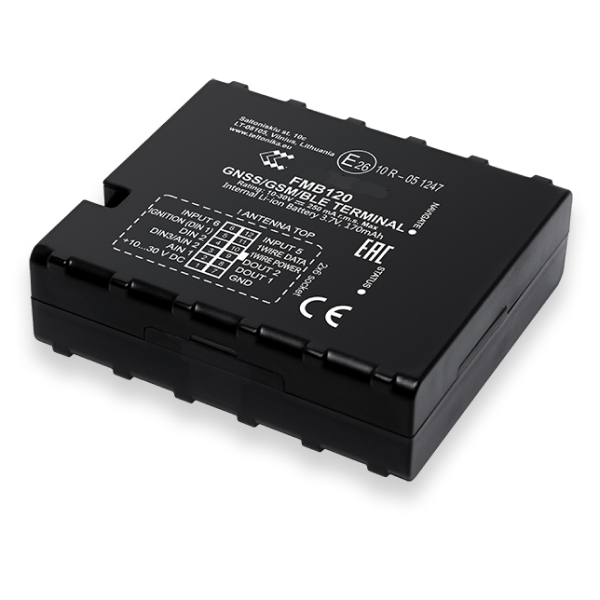

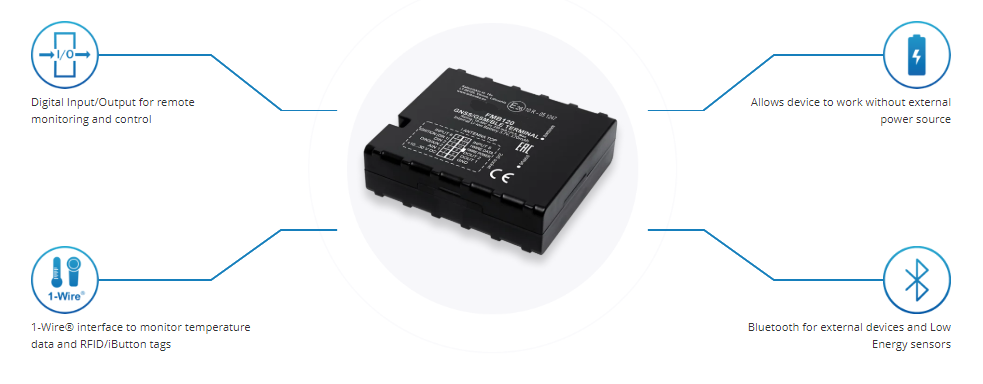

FMB120 small and professional tracker with internal high gain GSM and GNSS antennas...

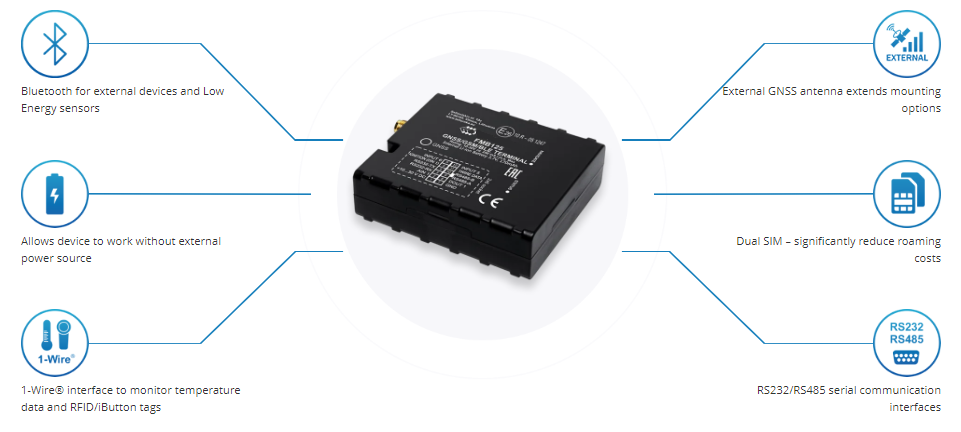

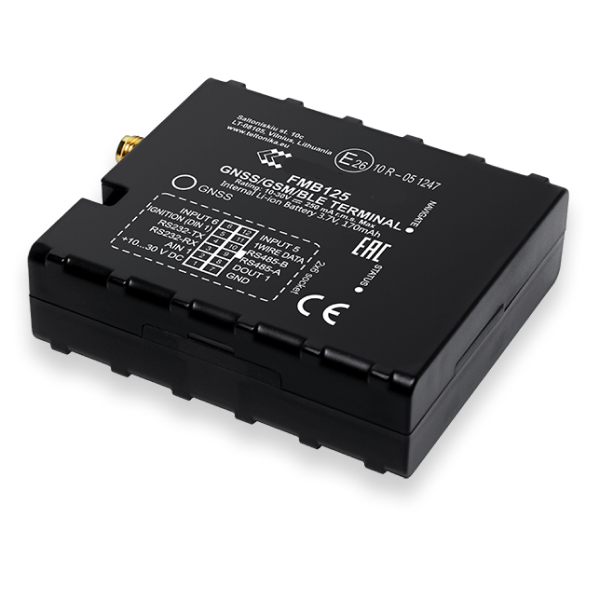

FMB125 small and professional tracker with internal high gain GSM and external GNSS ...

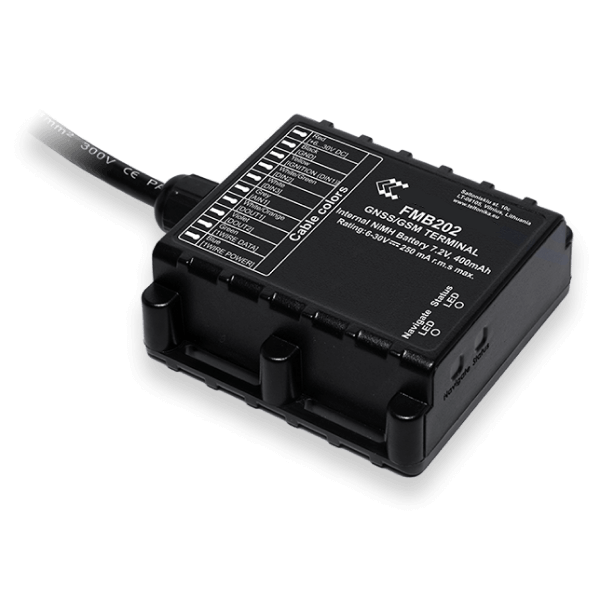

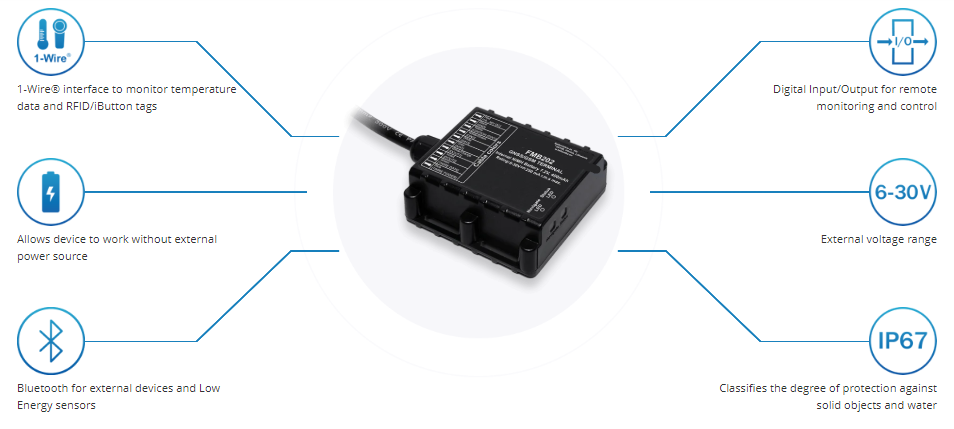

FMB202 is a SPECIAL waterproof (IP67) tracker with Bluetooth connectivity, internal high gain ...

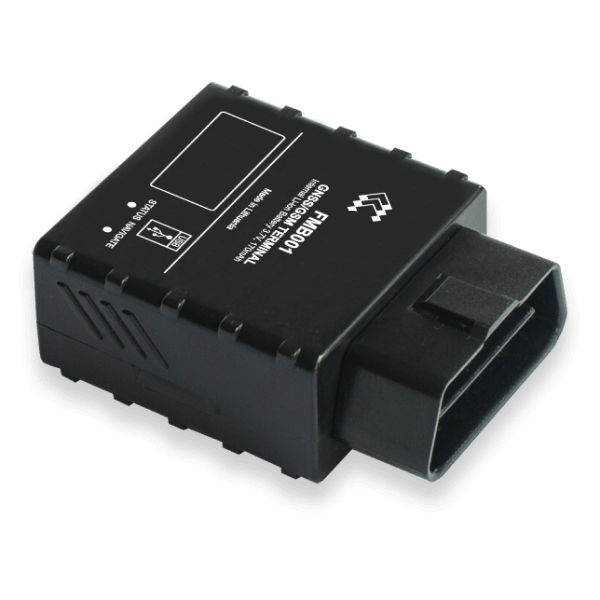

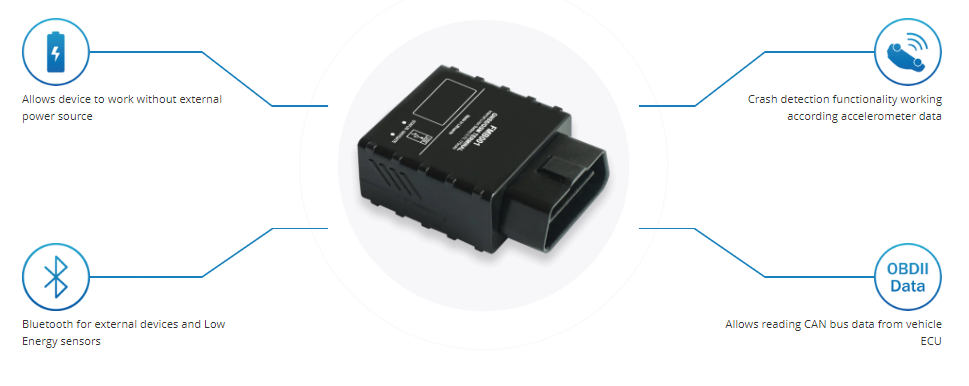

FMB001 is advanced OBDII Plug and Play tracker with GNSS, GSM and Bluetooth connectivity. It is ...

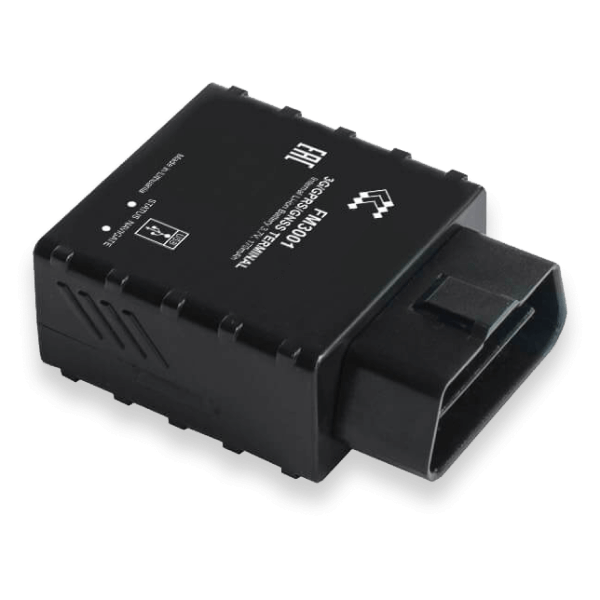

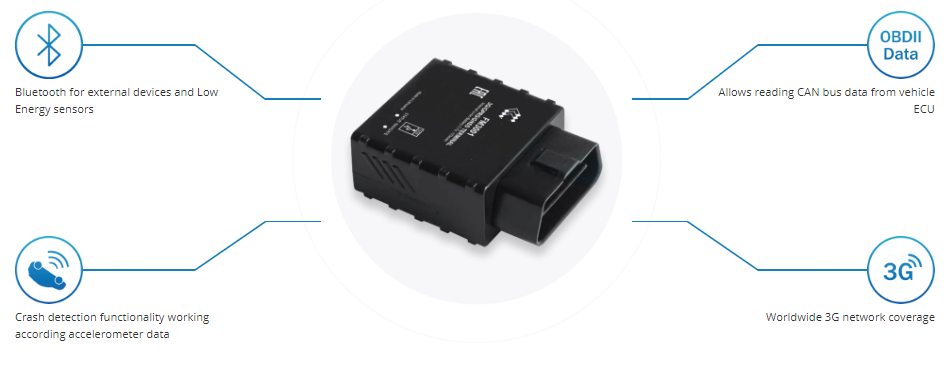

FM3001 is EASY OBDII Plug and Play tracker with GNSS, 3G and Bluetooth connectivity...

GT06E gets you a step ahead with 3G capabilities and better tracking, ideal for fleet tracking and management. Utilizing cutting-edge GPS technology, the GT06E features not only traditional tracking functions as tele-cutoff petrol, geo-fence, SOS alarm, overspeed alert, but optional digital outputs for door detection, vehicle pinpoint by audio-visual alert, external power voltage etc.
Share Now:
| Communication System | WCDMA/GSM |
|---|---|
| Frequency | WCDMA 850/900/1900/2100MHz GSM 850/900/1800/1900MHz |
| Networks | WCDMA /EDGE/GPRS |
| Output Power | Class 3 (24dBm +1/-3dB) for UMTS bands Class 4 (33dBm ±2dB) for GSM 850/900MHz Class 1(30dBm ±2dB) for GSM 1800/1900MHz |
| GPS | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| Location time | Hot start:≤1sec(open sky) Cold start:≤38sec(open sky) |
| Monitoring Scope | ≤ 5M |
|---|---|
| Antenna | Built-in GPS ceramic antenna; GSM quad-band antenna |
| LED Indicator | GPS(blue), GSM(green), Power(red) |
| Operating Voltage | 9-36VDC |
| Operating Temperature | 450mAh/3.7Vindustrial lithium polymer battery |
| Operating Humidity | 5%~95%,non-dense |
| Built-in Battery | 450mAh/3.7Vindustrial lithium polymer battery |
| Standby | 4 hours |
| Dimension | 98(L) ×52.0 (W) ×15.0 (H) mm |
| Weight | 80g |

Afteryears of popularity around the globe, GT06N has earned its market-proven stability and durability. Loaded with features, the battery-powered GT06N gives you real-time location viewing from the comfort of your computer or smartphone, and makes it a perfect choice for private cars and fleet management.
Share Now:
| GSM frequency | 850/900/1800/1900 MHz |
|---|---|
| GPRS | Class 12, TCP/IP |
| Memory | 64Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | MTK high sensitivity chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| GPS channel | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤32sec |
| Voice monitor range | ≤5 meters |
|---|---|
| Battery | 450mAh/3.7V Li-Polymer battery |
| Working voltage/current | 9-36VDC/30mA |
| Operating temperature | -20℃~ 70℃ |
| Standby time | 60 hours |
| Working time | 4 hours |
| Device weight | 96g |
| Device dimension | 105.8(L)*54.5(W)*16.4(H)mm |
| Box weight | 409g |
| Box dimension | 80g |

OB22 is an easy to fit plug & play OBD port tracker with superior location, tracking, reporting, logging, and security capabilities. Utilizing the GSM and GPRS communication network along with GPS technology, it is an ideal solution for leased vehicles or large fleets.
Share Now:
| GSM frequency | 850/900/1800/1900 MHz |
|---|---|
| GPRS | Class 12, TCP/IP |
| Memory | 64Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤2sec Avg. cold start≤32sec |
| Antenna | Built-in GPS ceramic antenna GSM quad-band antenna |
|---|---|
| Battery | 50mAh/3.7v lithium-polymer battery |
| Working voltage/current | 9-36VDC/32mA(12VDC) |
| Connector | OBD standard port |
| Standby current | 5mA |
| Operating temperature | -20℃~ 70℃ |
| Dimensions | 45.0(L)*22.5(W)*30.0(H)mm |
| Weight | 30g |
| LED indicator | Power, GPS, GSM |

Never suffer from getting lost and dreaded low battery again. HVT001 is not only a car charger, but also an inconspicuous GPS tracker. HVT001 is compatible with the greatest number of devices on the market and can provide vehicle’s real-time tracking details. With HVT001, you can locate the vehicle, eliminating those unwanted emotions and concerns.
Share Now:
| Network type | GSM/GPRS |
|---|---|
| Battery | 130mAh/3.7v lithium-polymer battery |
| Frequency | GSM 850/900/1800/1900MHz |
| Standby current | 5V USB charging port |
| Working voltage | 9-15VDC |
| Humidity range | 5% - 95% non-condensing |
| Dimensions | 84.0(L)*44.0(W)*38.0(H)mm |
| Weight | 102.8g |

With the finest craftsmanship, GV20 is a fully-featured, highly competitive and cost-effective 3G GPS tracker developed for vehicle, motor and bus tracking. It offers you crystal clear real-time tracking details, including location, route, flashback, etc., even in tough environment. It supports remote fuel/power cutoff and gives you insight on ignition status. Wherever you go, its instant alert notifications allow you to react accordingly and immediately.
Share Now:
| Communication System | WCDMA/GSM |
|---|---|
| Frequency | WCDMA 850/900/1900/2100MHz GSM 850/900/1800/1900MHz |
| WCDMA | 850/900/1900/2100MHz (B1/B2/B5/B8) |
| GSM frequency | 850/900/1800/1900 MHz |
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | Ublox |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤35sec |
| Standby current | 5mA/12VDC |
|---|---|
| Battery | 400mAh/3.7V |
| LED Indicator | GPS(blue), GSM(green), Power(red) |
| Working Voltage/current | 9-90VDC/31mA(12VDC) 19mA(24VDC) |
| Operating Temperature | -20℃~ 70℃ |
| Dimension | 88(L) ×43.0 (W) ×13.0 (H) mm |
| Weight | 60g |

Perfect for car rental, fleet management and logistics, the best-in-class GPS device WeTrack Lite is compact and lightweight, which only weights 26.6g. Featuring improved accuracy, it is designed specifically to make locating and routing vehicles as simple as possible. Hidden LED makes the device “invisible” and drivers will never know it's there unless you tell them.
Share Now:
| GSM frequency | 850/900/1800/1900 MHz |
|---|---|
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| Receive sensitivity | Class II RBER2%(-102dBm) |
| GPS chipset | High sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤32sec |
| GSM/GPS antenna | Built-in quad band GSM antenna, GPS ceramic antenna |
|---|---|
| LED indicator | GPS(blue),GSM(green) |
| Working voltage/current | 9-36VDC/32mA(12VDC)18mA(24VDC) |
| Standby current | ≤5mA |
| Operating Temperature | -20℃~ 70℃ |
| Waterproof rate | IPX5 |
| Battery | 100mAh / 3.7V industrial grade lithium battery |
| Device weight | 26.6g |
| Device dimension | 73.8(L)× 25.9(W)× 12.2(H)mm |

X3, a multifunctional GPS tracker, is optimized for vehicle tracking. It provides accurate real-time location, two-ways communication and driving behavior event, supports multiple sensors such as G-sensor and door-sensor; supports multiple external equipment for various applications. X3 is an extensible GPS tracking device for fleet management and security monitoring deployment.
Share Now:
| GSM frequency | 850/900/1800/1900 MHz |
|---|---|
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤35sec |
| Voice monitor range | ≤5meters |
|---|---|
| Battery | 450mAh/3.7V Li-Poiymer battery |
| Working Voltage/current | 9-36VDC/45mA(12VDC), 28mA(24VDC |
| Operating Temperature | -20℃~ 70℃ |
| Dimension | 80(L) ×55.8.0 (W) ×23.4 (H) mm |
| Weight | 95g |

WeTrack2 (ET200) GPS vehicle tracker is designed to meet the needs of various peripherals. Its wide voltage range ensures its stable operation in e-bike, motorcycles, cars and trucks. Small but compact, its highly reliable electric circuit and internal battery design functions not only basic tracking but SOS call, remote-cutoff fuel, geo-fence, overspeed alert, historical data upload and more.
Share Now:
| GSM frequency | 850/900/1800/1900 MHz |
|---|---|
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤35sec |
| Battery | 270mAh/3.7V Li-Polymer battery |
|---|---|
| Working voltage/current | 9-90VDC/7mA(60VDC) |
| Standby time | 43 hours |
| Working time | 3.6 hours/td> |
| Operating Temperature | -20℃~ 70℃ |
| Device dimension | 78.0(L)*41.0(W)*13.0(H)mm |
| Device weight | 38g |
| Box weight | 190g |
| Box dimension | 123(L)*85(W)*49(H)mm |

GT08 is a new Vehicle Tracker based on the GSM/GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. This real-time car tracking device gives you up-to-the-minute speed, location updates and detailed reports. It is an invaluable tool for monitoring either a single car or an entire fleet of vehicles.
Share Now:
| GSM frequency | 850/900/1800/1900 MHz |
|---|---|
| GPRS | Class 12, TCP/IP |
| Memory | 64Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤35sec |
| Dust water proof level | IP65 |
|---|---|
| Battery | 450mAh/3.7V Li-Polymer battery |
| Working voltage/current | 9-90VDC/7mA(6VDC) |
| Operating Temperature | -20℃~ 70℃ |
| Operating Humidity | 5%~95%,non-dense |
| Standby time | 70 hours |
| Working time | 5 hours |

ET25 is a small and light GPS tracker with solid GPS tracking capability and connectivity. Featuring a sleek and compact design, the ET25 will provide a detailed report of the vehicle’s location and activities. It is the most effective method of monitoring driving activity of your vehicles.
Share Now:
| GSM frequency | 850/900/1800/1900 MHz |
|---|---|
| GPRS | Class 12, TCP/IP |
| Memory | 64Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±2dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤2sec Avg. cold start≤32sec |
| Antenna | Built-in GPS ceramic antenna; GSM quad-band antenna |
|---|---|
| Battery | 100mAh/3.7v lithium-polymer battery |
| Working voltage/current | 7-90VDC/8mA(36VDC) |
| Standby current | 5mA |
| Operating temperature | -20℃~ 70℃ |
| Dimensions | 73.8.0*25.9*12.2mm |
| Weight | 26.5g |
| LED indicator | GPS, GSM |

Seamlessly combined with HW and SW, the ALL-IN-ONE bike sharing solution effectuates information interaction among operators, users and bicycles, bringing superior riding experience and visualized operation, For users, find or reserve a bicycle from web browser or mobile APP are available. Bicycles can be unlocked by scanning the QR code, SMS, GPRS and Bluetooth. When riding finished, user can view and share your mapped rides and statistics, including miles traveled, calories burned, cost, etc.
Share Now:
| CPU | CPU MTK2503, dominant frequency260MHz |
|---|---|
| Communication mode | GSM |
| GSM frequency | 850 / 900 / 1800 / 1900MHz |
| GPRS | Class 12 ,TCP/IP |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Memory | 64Mb |
| Max frequency error | ±0.1ppm |
| Receive sensitivity | Class II RBER2%(-102dBm) |
| GPS chip | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤32sec GNSS: ≤10sec |
| Wi-Fi location accuracy | 3-50meters |
|---|---|
| Bluetooth | CSR BLE 4.0 |
| iBeacon location accuracy | 1-10meters |
| G-Sensor | BMA 250E |
| Avg working current | About 60mA |
| Avg standby current | About 4mA |
| Charging | Solar energy (6V/5W) |
| Battery | 10000mAh (Built-in 3.7V/2500mAh x 4 bytes 18650) |
| Device dimension | 73.8(L)× 25.9(W)× 12.2(H)mm |
| Waterproof grade | IPx6 |
| Working condition | Temperature:-20-60℃ Humidity:5%-95% non-condensing |
| Antenna | Built-in quad band GSM antenna,25 x 25 x 4mm GPS ceramic antenna |

Being stylish and user-friendly, our JS40 sharing electric scooter offers last-mile solution to help riders connect with transit. With 4G IoT modules insides, it seamlessly works with the controllers and allows you to get the instant scooter and riding information. 350W power motor enables long distant ride and cut down unnecessary constantly charging. Start your awesome ride anytime, our scooter can give you safe, smooth and perfect riding experience.
Share Now:
| Open size | 47 x 19.9 x 19 in |
|---|---|
| Folding size | 47x 49.9 in |
| Maximum load | 100KG |
| Battery | 36V/13.0AH |
| Charging time | 6 hours |
| Distance | 45km |
| Speed | Max.30km/h |
| Tires | 10 in solid tires |
| Power motor | 350W |
| Protection class | IP67 |
| Front light | 1, 1.5W, distance: 2-8 meters |
| Back lights | 2 |
| Material | Aluminum alloy |

GT800 Vehicle GPS Tracker is a high-end multifunctional vehicle GPS tracker with solid performance for reasonable price. In addition to GPS and AGPS tracking, This GPS tracker device supports door status detection, two-way communication as well as SOS call.
Share Now:
| GSM frequency | 850/900/1800/1900 MHz |
|---|---|
| GPRS | Class 12, TCP/IP |
| Memory | 64Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤32sec |
| Voice monitor range | ≤5 meters |
|---|---|
| Battery | 800mAh/3.7V Li-Polymer battery |
| Working voltage/current | 9-36VDC/45mA(12VDC), 28mA(24VDC) |
| Operating temperature | -20℃~ 70℃ |
| Dimension | 93.0(L)*76.0(W)*18.0(H)mm |
| Weight | 91.7g |
| Accessories | Power cable, SOS cable, Microphone, Replay(4pin),2*Relay(5pin), Speaker, I&O cable |

FMB920 is compact and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and integrated backup battery. FMB920 is designed for light vehicles tracking in applications like insurance telematics, rental cars, recovery of stolen cars, public safety services, delivery transport, taxi and much more. Inputs/outputs extend device usage scenarios. Digital input can be used for ignition, door or alarm button status monitoring. Vehicle remote immobilizing may be achieved using FMB920 digital output.
Share Now:
| Module | |
| Name | TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 6 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery (0.63 Wh) |
| Power consumption | At 12V < 2 mA (Ultra Deep Sleep) At 12V < 4 mA (Deep Sleep) At 12V < 5 mA (Online Sleep) At 12V < 6 mA (GPS Sleep) At 12V < 25 mA (nominal) |
| Bluetooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner |
| Interface | |
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Physical specification | |
| Dimensions | 79 x 43 x 12 mm (L x W x H) |
| Weight | 54 g |
| Operating environment | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP54 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Vahan Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), ODBII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| Certification & Approvals | |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, MTBF, REACH |

FMB120 small and professional tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB120 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door etc.
Share Now:
| Module | |
| Name | TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Power consumption | At 12V < 6 mA (Ultra Deep Sleep) At 12V < 8 mA (Deep Sleep) At 12V < 11 mA (Online Sleep) At 12V < 20 mA (GPS Sleep) At 12V < 35 mA (nominal) |
| Bluetooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner |
| Interface | |
| Digital Inputs | 3 |
| Digital Outputs | 2 |
| Analog Inputs | 2 |
| CAN Adapter inputs | 1 |
| 1-Wire | 1 |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM + eSIM |
| Memory | 128MB internal flash memory |
| Physical specification | |
| Dimensions | 65 x 56,6 x 18,9 mm (L x W x H) |
| Weight | 55 g |
| Operating environment | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | -0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Vahan Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
| Certification & Approvals | |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, REACH |

FMB125 small and professional tracker with internal high gain GSM and external GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB125 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door etc.
Share Now:
| Module | |
| Name | Vahan TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Power consumption | At 12V < 6 mA (Ultra Deep Sleep) At 12V < 6,5 mA (Deep Sleep) At 12V < 7 mA (Online Sleep) At 12V < 12 mA (GPS Sleep) At 12V < 38 mA (nominal) |
| Bluetooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner |
| Interface | |
| Digital Inputs | 1 |
| Digital Outputs | 1 |
| Analog Inputs | 1 |
| CAN Adapter inputs | 1 |
| 1-Wire | 1 |
| RS232 | 1 |
| RS485 | 1 |
| GNSS antenna | External (MMCX connector) |
| GSM antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Dual SIM |
| Memory | 128MB internal flash memory |
| Physical specification | |
| Dimensions | 65 x 56,6 x 18,9 mm (L x W x H) |
| Weight | 52 g |
| Operating environment | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Vahan Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), RS232/485 Fuel sensor, LV-CAN200, ALL-CAN300, CAN-CONTROL, ODBII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle) |
| RS232 Modes | Log Mode, NMEA, LLS, LCD, RFIH HID/MF7, Garmin FMI, TCP ASCII/Binary |
| RS485 Modes | Log Mode, NMEA, LLS, TCP ASCII/Binary |
| Certification & Approvals | |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, REACH |

FMB202 is a SPECIAL waterproof (IP67) tracker with Bluetooth connectivity, internal high gain GNSS and GSM antennas and integrated high capacity backup battery. Device is designed to work longer without power supply. FMB202 with NiMH battery can work up to 2 days in power saving mode. FMB202 is perfectly suitable for agriculture, delivery, refrigerated transport, trailers tracking, security & emergency services and even more. 6-30V power supply makes FMB202 suitable for motorbikes and water transport.
Share Now:
| Module | |
| Name | Vahan TM2500 |
| Technology | GSM/GPRS/GPS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 6 - 30 V DC with overvoltage protection |
| Internal Back-up battery | 400 mAh Ni-MH battery (2.88 Wh) |
| Power consumption | At 12V < 1,9 mA (Ultra Sleep) At 12V < 3,7 mA (Deep Sleep) At 12V < 4 mA (Online Sleep) At 12V < 11,6 mA (GPS Sleep) At 12V < 27,6 mA (nominal) |
| Bluetooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support |
| Interface | |
| Digital Inputs | 3 |
| Digital Outputs | 2 |
| Analog Inputs | 1 |
| 1WIRE DATA | 1 |
| 1WIRE POWER | 1 |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | Micro-USB |
| LED indication | 2 status LED lights |
| SIM | SIM |
| Memory | 128MB internal flash memory |
| Physical specification | |
| Dimensions | 72,5 x 73 x 27,3 mm (L x W x H) |
| Weight | 205 g |
| Operating environment | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP67 |
| Battery storage temperature | -20 °C to +45°C |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, DOUT Control Via Call, GNSS Fuel Counter, Immobilizer, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Vahan Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, DOUT control, Debug |
| GPRS commands | Configuration, DOUT control, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | LLS (Analog), OBDII dongle |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (OBDII dongle) |
| Certification & Approvals | |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, REACH |

FMB001 is advanced OBDII Plug and Play tracker with GNSS, GSM and Bluetooth connectivity. It is perfectly suitable for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other where simple integration is a must. Also, it has additional feature – reading OBDII data from vehicles on-board computer. FMB001 device supports temperature/humidity sensors, hands-free, firmware and configuration update via Bluetooth.
Share Now:
| Module | |
| Name | Vahan TM2500 |
| Technology | GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | 33 channel |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| Technology | GSM |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| Data transfer | GPRS Multi-Slot Class 12(up to 240 kbps) |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | 170 mAh Li-Ion battery 3.7 V (0.63 Wh) |
| Power consumption | At 12V < 5 mA (Ultra Deep Sleep) At 12V < 7 mA (Deep Sleep) At 12V < 7 mA (Online Sleep) At 12V < 8 mA (GPS Sleep) At 12V < 28 mA (nominal) |
| Bluetooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support |
| OBD Interface | |
| Data reading | Up to 32 vehicle onboard parameters, supported OBD protocols: ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) |
| Interface | |
| Digital Inputs | 1 |
| Connection | ODBII Socket |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | 2.0 Micro-USB |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Physical specification | |
| Dimensions | 50,7 x 49,6 x 25 mm (L x W x H) |
| Weight | 63 g |
| Operating environment | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Vahan Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | OBD II |
| Ignition detection | Digital Input 1, Accelerometer, External Power Voltage, Engine RPM |
| Certification & Approvals | |
| Regulatory | CE/RED, E-Mark, EAC, RoHS, REACH |

FM3001 is EASY OBDII Plug and Play tracker with GNSS, 3G and Bluetooth connectivity. FM3001 is perfectly suitable for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other where simple integration is a must. FM3001 has additional feature – reading OBDII data from on-board computer. Device supports hands free,firmware and configuration update via Bluetooth. 3G feature makes this device usable worldwide.
Share Now:
| Module | |
| Name | Quectel UC20, Vahan TM2500 |
| Technology | 3G/GSM/GPRS/GNSS/BLUETOOTH |
| GNSS | |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| Receiver | Tracking: 33/99 acquisition channels |
| Tracking sensitivity | -165 dBM |
| Accuracy | < 3 m |
| Hot start | < 1 s |
| Warm start | < 25 s |
| Cold start | < 35 s |
| Cellular | |
| Technology | UMTS/HSPA+, GSM/GPRS/EDGE |
| 2G bands | Quad-band 850 / 900 / 1800 / 1900 MHz |
| 3G bands | 850 / 900 / 1700 / 1900 / 2100 MHz |
| Data transfer | HSPA+ uplink up to 5,76 Mbps, downlink up to 14.4 Mbps, UMTS uplink/downlink up to 384 Kbps, EDGE uplink/downlink up to 236.8 Kbps, GPRS and EDGE class 12 |
| Data support | SMS (text/data) |
| Power | |
| Input voltage range | 10 - 30 V DC with overvoltage protection |
| Back-up battery | Li-Polymer rechargeable battery, 3.7 V, 170 mAh |
| Power consumption | At 12V < 2,2 mA (Ultra Deep Sleep) At 12V < 4,5 mA (Deep Sleep) At 12V < 5 mA (Online Sleep) At 12V < 12 mA (GPS Sleep) At 12V < 35 mA (nominal) |
| Bluetooth | |
| Specification | 4.0 + LE |
| Supported peripherals | Temperature and Humidity sensor, Headset, Inateck Barcode Scanner, Universal BLE sensors support |
| OBD Interface | |
| Data | K-Line, CAN bus data |
| Data reading | Up to 32 vehicle onboard parameters, supported OBD protocols: SAE J1850 PWM (41.6 kbaud) SAE J1850 VPW (10.4 kbaud) SAE J1939 CAN (29 bit ID, 250 kbaud) ISO 9141-2 (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (5 baud init, 10.4 kbaud) ISO 14230-4 KWP (fast init, 10.4 kbaud) ISO 15765-4 CAN (11 bit ID, 250 kbaud) ISO 15765-4 CAN (11 bit ID, 500 kbaud) ISO 15765-4 CAN (29 bit ID, 250 kbaud) ISO 15765-4 CAN (29 bit ID, 500 kbaud) |
| Interface | |
| Connection | ODBII Socket |
| GNSS antenna | Internal High Gain |
| GSM antenna | Internal High Gain |
| USB | Micro USB socket |
| LED indication | 2 status LED lights |
| SIM | Micro-SIM |
| Memory | 128MB internal flash memory |
| Physical specification | |
| Dimensions | 50,7 x 49,6 x 25mm (L x W x H) |
| Weight | 63 g |
| Operating environment | |
| Operating temperature (without battery) | -40 °C to +85 °C |
| Storage temperature (without battery) | -40 °C to +85 °C |
| Operating humidity | 5% to 95% non-condensing |
| Ingress Protection Rating | IP41 |
| Battery charge temperature | 0 °C to +45 °C |
| Battery discharge temperature | -20 °C to +60 °C |
| Battery storage temperature | -20 °C to +45 °C for 1 month -20 °C to +35 °C for 6 months |
| Features | |
| Sensors | Accelerometer |
| Scenarios | Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip |
| Sleep modes | GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep |
| Configuration and firmware update | FOTA Web, FOTA, Vahan Configurator (USB, Bluetooth), FMBT mobile application (Configuration) |
| SMS | Configuration, Events, Debug |
| GPRS commands | Configuration, Debug |
| Time Synchronization | GPS, NITZ, NTP |
| Fuel monitoring | OBD II |
| Ignition detection | Accelerometer, External Power Voltage, Engine RPM |
| Certification & Approvals | |
| Regulatory | CE/RED, FCC, E-Mark, RoHS, REACH |
info@vahantrackers.in
+91 90812 033 37
www.vahantrackers.in
© VAHAN TRACKERS. All rights reserved by Jainam Multi-Product (India) Pvt. Ltd.
