Asset tracker is designed for defending your assets, such as container, farm machinery and truck. With asset GPS tracker, you can keep eye on your asset anytime anywhere. It provides real-time monitoring and can send out instant alarm in urgent cases. Asset GPS tracking device is wireless, so you can realize easy installation.
No more cables, no more external battery, AT1 is a simple but functional asset GPS tracker
AT2 is a mini pocket sized device that can be placed inside the asset, on the people, and even
AT3 is a all in one rugged, self-contained unit featuring a long-lasting battery, tracking ...
The advanced features, rugged construction and industry-leading battery life make the AT4 the ...
The advanced features, rugged construction, and industry-leading battery life make the AT4 the ...
A small form factor tracker that combines with HERE technology to provide exceptional longevity, ...

No more cables, no more external battery, AT1 is a simple but functional asset GPS tracker designed for a variety of uses including fleet services, freight operations, high value asset tracking, and special needs individuals. With rechargeable 6000mAh internal battery, the device’s standby time can last about 25 days. It is also waterproof so you don’t have to worry about the elements.
Share Now:
| GSM frequency | 850/900/1800/1900MHz |
|---|---|
| Receive sensitivity | Class II RBER2%(-104dBm) |
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| Receive sensitivity | Class II RBER2%(102dBm) |
| GPS chipset | MTK high sensitivity chip |
|---|---|
| Frequency | L1, 1575.42MHz C / A code |
| GPS channel | 32 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1 sec Avg. cold start≤32 sec |
| Antenna | Built in GPS quad-band antenna, GPS ceramic antenna, WIFI antenna |
|---|---|
| LED | Power (red), GPS(blue),GSM(green) |
| Operating temperature | -20℃~ 70℃ |
| Working voltage/current | 3.7V/60mA |
| Standby time | 25 days |
| Battery | 6000mAh/3.7V industrial Li-Polymer battery |
| Device Dimension | 85.0 (L)×58.0 (W)×29.00(H)mm |
| Device Weight | 161g;230g (with magnetic cover) |
| Working time | 100 hours (upload GPS data every 10 seconds) |

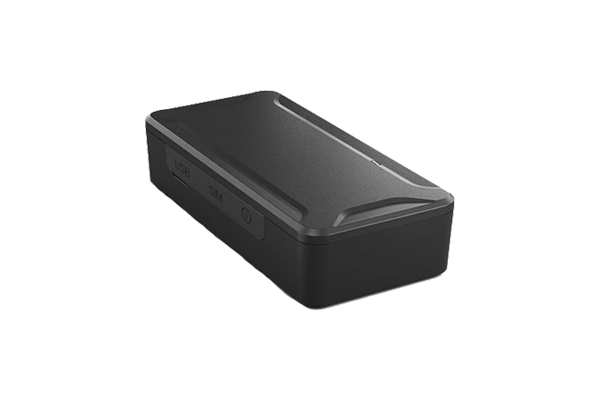

AT2 is a mini pocket sized device that can be placed inside the asset, on the people, and even underneath the vehicle. As a non-wiring device, this asset tracker has the optional magnet mount allowing for instant mounting. Powered by 1000mAh rechargeable battery, it supports SIM change alarm and voice monitoring.
share:
| GSM frequency | 850/900/1800/1900MHz |
|---|---|
| Receive sensitivity | Class II RBER2%(-104dBm) |
| GPRS | Class 12, TCP/IP |
| Memory | 32+64Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| Receive sensitivity | Class II RBER2%(102dBm) |
| GPS chipset | MTK high sensitivity chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| GPS channel | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1 sec Avg. cold start≤45 sec |
| Voice monitoring range | ≤ 5M |
|---|---|
| Charging Voltage / current | DC5V / 500mA |
| Operating temperature | -20℃~ 55℃ |
| GSM/GPS antenna | Built-in quad band GSM antenna; GPS dual-mode antenna; WIFI |
| Charge port | Micro USB |
| Battery | 1000mAh/3.7V industrial grade Li-Polymer battery |
| Device Dimension | 65*30.5*18mm |
| Device Weight | 42g |
| Standby time | 1.Tracking mode (GPRS is always connected,and GPS is waked up by vibration):≥14 hours 2.Sleep mode (GPRS is always connected and GPS sleeps):≥7 days |

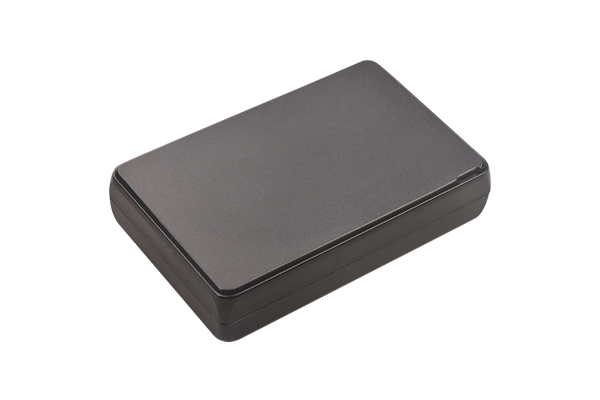

AT3 is a all in one rugged, self-contained unit featuring a long-lasting battery, tracking hardware and a powerful magnetic mount. With GPS for location tracking and GSM + WCDMA for data communication, AT3 asset GPS tracking device supports fast and accurate real-time tracking. Its battery life is up to 3 years which is an ideal self-contained hardware solution for long term deployments. IPx5 rating provides total protection against water spray.
Share Now:
| GSM frequency | GSM850/GSM900:33±3dBm WCDMA 850/900/1900/2100MHz |
|---|---|
| Communication system | GSM |
| GPRS | Class 12, TCP/IP |
| Receive sensitivity | Class II RBER2%(-102dBm) |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | MTK high sensitivity chip |
|---|---|
| Frequency | GPS L1, 1575.42MHz |
| GPS channel | 32 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | -162dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤35sec |
| Switch | 1 for base falling detection |
|---|---|
| LED Indicator | Red: status |
| Working Voltage/current | 7-18VDC |
| Operating temperature | -20℃~ 70℃ |
| GSM/GPS antenna | Built-in quad band GSM antenna, GPS dual-mode antenna |
| Tracking hour | 80 hours ( GPS always ON) |
| Battery | 5400mAh / 3.6V lithium battery |
| Dimension | 93.0 x 58.0x 22.0mm |
| Weight | 160g |

The advanced features, rugged construction and industry-leading battery life make the AT4 the new state of the art in GPS vehicle tracking. Using GPS, LBS positioning, AT4 asset tracker gives detailed reports and tell you exactly where a vehicle has been, where it's headed and how fast it's traveling. With 10000mAh battery and IPX5 water proof to maximize performance, it puts you in total control of individual vehicles or fleets. Strong magnet facilitates the installation while built-in MIC realizes voice monitoring
Share Now:
| GSM frequency | 850/900/1800/1900MHz |
|---|---|
| Receive sensitivity | Class II RBER2%(-102dBm) |
| GPRS | Class 12, TCP/IP |
| Receive sensitivity | Class II RBER2%(-102dBm) |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | High sensitivity GPS chip |
|---|---|
| Frequency | GPS L1, 1575.42MHz |
| GPS channel | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤32sec |
| Switch | 1 for base falling detection 1 for inner disassembly detection 1 for power control |
|---|---|
| LED Indicator | Red: working status; Green(4); battery |
| Working Voltage/current | 3.7V/60mA |
| Operating Voltage | -20℃~ 70℃ |
| GSM/GPS antenna | Built-in quad band GSM antenna, GPS dual-mode antenna |
| Charger | 5 VDC / 2A |
| Charging hour | 8 hours |
| Tracking mode | 30 days(drive for 2 hours per day) |
| Battery | 10000mAh/3.7V industrial grade lithium polymer battery |
| Device Dimension | 108.0 x61.0x 30.0mm |
| Device Weight | 285g |

AT6 is a 3G asset GPS tracker with 850/900/1900/2100MHz WCDMA frequency and 850/900/1800/1900MHz GSM frequency. It is equipped with high powered lithium-ion battery which can last 7 weeks to 2 years depending on the location reporting interval. The magnetic and waterproof housing allows AT6 to be easily and inconspicuously placed inside or underneath a vehicle or other asset.
Share Now:
| Communication System | WCDMA/GSM |
|---|---|
| GSM frequency | GSM: 850/900/1800/1900MHz WCDMA: 850/900/1900/2100MHz (B1/B2/B5/B8) |
| Receive sensitivity | Class II RBER2%(-102dBm) |
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm, GSM1800/GSM1900:30dBm WCDMA:24dBm |
| Max frequency error | ±0.1ppm |
| GPS chipset | High sensitivity GPS chip |
|---|---|
| Frequency | GPS L1, 1575.42MHz |
| GPS channel | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | -162dBm |
| Acquisition Sensitivity | -149dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤45sec |
| Switch | 1 for power control |
|---|---|
| Button | 1 for power on/off 1 for cover remove alarm 1 for tamper/disassemble alarm |
| LED Indicator | 1 red LED for GSM; 4 blue LEDs for battery |
| Standby | >2 years( GSM off, one position per day) >50 days (GPRS always connected, GPS sleep) >120 hours (GPS always on) |
| Operating Temperature | -20℃~ 70℃ |
| GPS antenna | GPS ceramic antenna |
| USB port | Micro 5 Pin |
| Battery | 10000mAh/3.7V industrial grade lithium polymer battery |
| Device Dimension | 108.0 x61.0x 30.0mm |
| Device Weight | 286g |

Designed for container transportation and cargo shipping, the 3G GPS tracker CT10 is a useful security solution providing enhanced visibility and security of assets in-transit across the world. Using WCDMA technology, the ALL NEW cost-effective, longlife asset GPS tracking device is able to provide accurate information on the whereabouts of the containers: over the ocean and overland in a seamless and efficient way.
Share Now:
| Communication System | M770B GSM &WCDMA communication module |
|---|---|
| Communication frequency | GSM: 850/900/1800/1900MHz WCDMA: BAND1/BAND2/BAND5/BAND8 |
| Sensitivity | <-104dBm |
| GPRS | Class 12, TCP/IP |
| Receive Sensitivity | Class II RBER2%(-102dBm) |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3dBm |
| Max frequency error | ±0.1ppm |
| GPS chipset | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤38sec |
| GPS antenna | GPS ceramic antenna |
|---|---|
| Operating temperature | -20℃~ 70℃ |
| Water/Dust proof | IP65 |
| Standby time | 60 days (upload one GPS data every 6 hours in static mode) |
| Battery | 3800mAh Li-Polymer battery |
| Device Dimension | 43*104*200mm |
| Device Weight | 370g |

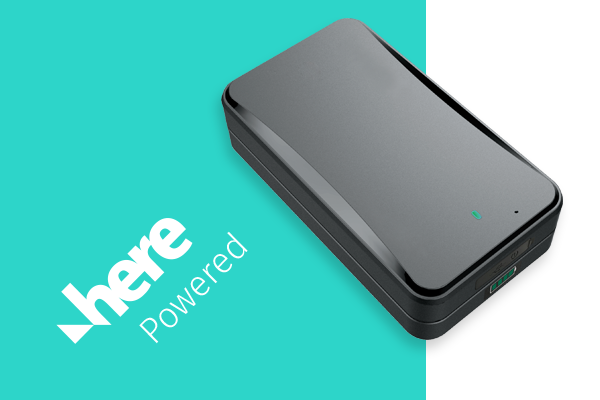

The advanced features, rugged construction, and industry-leading battery life make the AT4 the new state of the art in GPS asset tracking. Using GPS and HERE Network Positioning, AT4 gives detailed reports and tells you exactly where an asset is, where it has been, and how fast it’s traveling. With 10000mAh battery and IPX5 water proofing to maximize performance, it puts you in total control of your tracked assets. A strong magnet facilitates the installation. More about HERE Tracking
Share Now:
| GSM frequency | 850/900/1800/1900MHz |
|---|---|
| Receive sensitivity | Class II RBER2%(-102dBm) |
| GPRS | Class 12, TCP/IP |
| Receive sensitivity | Class II RBER2%(-102dBm) |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤32sec |
| Button | 1 x power |
|---|---|
| Working Voltage/current | 3.7V/60mA |
| Operating temperature | -20℃~ 70℃ |
| GSM/GPS antenna | Built-in quad band GSM antenna, GPS dual-mode antenna |
| Charger | 5 VDC / 2A |
| Charging hour | 8 hours |
| Battery | 10000mAh/3.7V industrial grade lithium polymer battery |
| Device Dimension | 108.0 x61.0x 30.0mm |
| Device Weight | 285g |

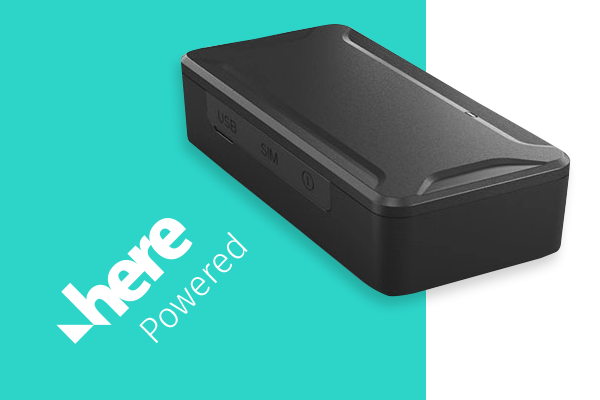

A small form factor tracker that combines with HERE technology to provide exceptional longevity, to last short- to medium-duration logistics journeys. The AT2 requires no additional installation and comes with various mounting options. It provides an excellent compromise between size, ease of use and longevity. More about HERE Tracking
Share Now:
| GSM frequency | 850/900/1800/1900MHz |
|---|---|
| Receive sensitivity | Class II RBER2%(-104dBm) |
| GPRS | Class 12, TCP/IP |
| Memory | 32+64Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| Receive sensitivity | Class II RBER2%(102dBm) |
| GPS chipset | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1 sec Avg. cold start≤45 sec |
| Charging Voltage / current | DC5V / 500mA |
|---|---|
| Operating temperature | -20℃~ 55℃ |
| GSM/GPS antenna | Built-in quad band GSM antenna; GPS dual-mode antenna; WIFI |
| Charge port | Micro USB |
| Battery | 1000mAh/3.7V industrial grade Li-Polymer |
| Device Dimension | 65*30.5*18mm |
| Device Weight | 42g |
