Two years’ R&D made Intelligent E-lockterminals on Monitoring and Management for logistics industry which adapts toonline managements for mobile assets from global perspective.The Intelligent terminals are a combination of several technologies, such as Micro- Mechatronic, RFID, GPRS and GPS.
KS G-508 is a kind of GPS tracker device. It is equipped with GPS, GSM module for container real time position tracking.
VT701 is a intelligent tracking lock device for asset management system. The main feature can be list as: Designed unlock not by key,...
VT702 is a electronic lock supported onlineand offline keyboard unlocking. The main feature includes online unlock bysystem and ...

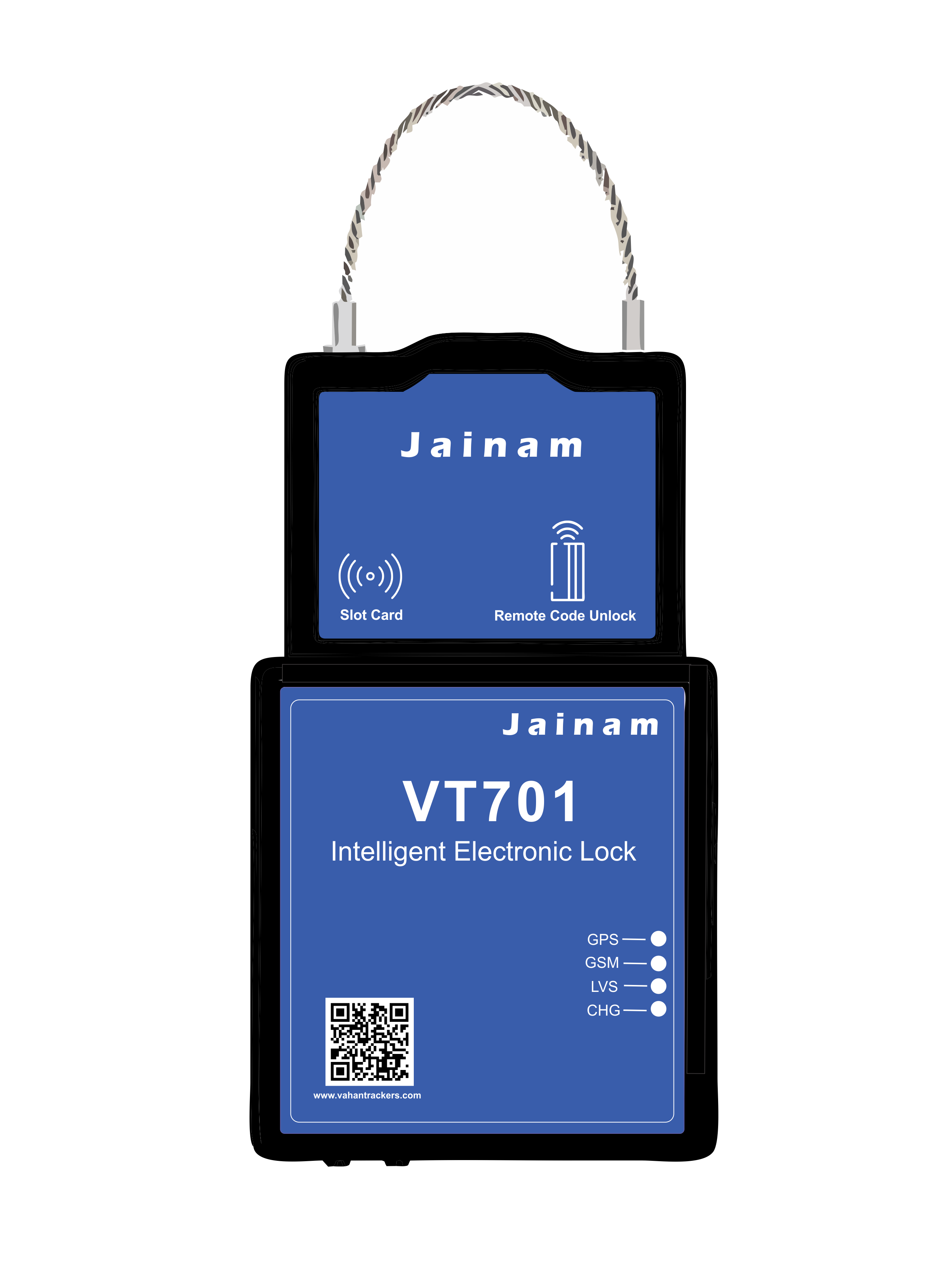

VT701 is a intelligent tracking lock device for asset management system. The main feature can be list as: Designed unlock not by key, but by RFID/remotely password; With big capacity battery, long working time; Built-in wireless module, real time online monitoring ; Built-in GPS module, global locating ; safety control, illegal unlock alarm and so on. The application can be container, trailer, Van type trucks and other types of trucks remote monitoring system.
Share Now:
1、Unique Design, Unlock With RFID/SMS Password
2、Big Capacity Battery, Long Working Time
3、Built-in GSM Module, Remote Online Monitor
4、Built-in GPS Module, Real Time Global Positioning
5、Satety Monitoring, Alarms For illegal Unlocking
| Transmission Mode | Time interval |
|---|---|
| IData automatic upload | Time interval |
| Locating mode | GPS / LBS |
| Vibration detecting | Built in 3G sensor |
| Lock status monitorina mode | real time monitoring |
| Unlock | RFID/remote password |
| Wake up mode | Call / SMS / Swiping card / Vibration ? Lock-string tamper |
| Alarm | Lock-string tamper alarm |
|---|---|
| Swiping card alarm | |
| Unlock alarm | |
| Wrong password alarm | |
| Geofence alarm |
| Dimension(LxWxH) | 195mmx114mmx37mm |
|---|---|
| Housing Material | Engineering plastics |
| Weight | 700g (with standard accessories) |
| Built in battery | 12000mAh rechargeable lithium battery |
| Working temperature | -20°C---+60°C |
| Storage temperature | -40°C---+80°C |
| Relative humidity | 5%--99% |
| Waterproof Grade | IP65 |
| Average standby current | Less than 0.1mA |
| Average working current | Less than 90mA |
| GSM frequency | 900/1800/1900 Mhz |
| Size (LxWxH) | 195x114x37 (mm) |
|---|---|
| Weight | About 700g |

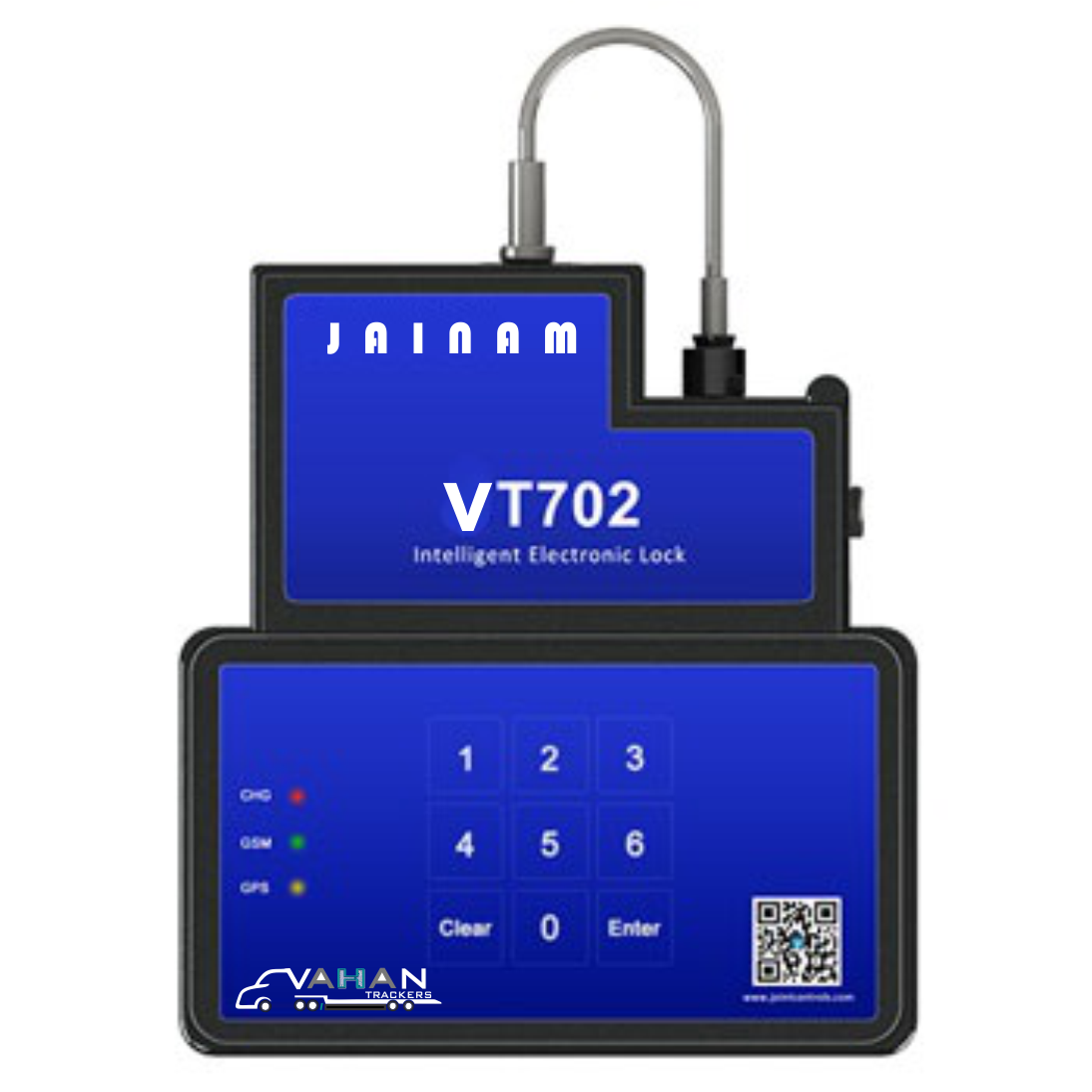

VT702 is a electronic lock supported onlineand offline keyboard unlocking. The main feature includes online unlock bysystem and dynamic password from APP. After acquisition of dynamic password, italso supports offline keyboard unlock,which can solve password-receiving failureor unlock-failure.Meanwhile, the separating lock-rope design is replaceable foroptional length,multi-door and fully-covered door, which can prevent illegaldismantling. It can be applied in management of containers, trailers,van truck.
Share Now:
1. Real-time Tracking
2. Remote Online Unlock
3. Nearby Offline Unlock
4. Dynamic and Static Password
5. Illegal Unlocking/String-cut Alarm
| 32+32 Mb | |
| Real-time tracking | |
| Working mode:time mode,event mode | |
| Lock status monitoring | |
| Real-time battery monitoring | |
| Remote online unlock | |
| Nearby offline unlock | |
| Password: dynamic and static |
| String-cut alarm | |
| Abnormal unlocking alarm | |
| Consecutive wrong password alarm | |
| Low battery alarm |
| Dimension(L×W×H) | 178mmx170mmx43mm |
|---|---|
| Length of string | 285mm |
| Weight | 1000g |

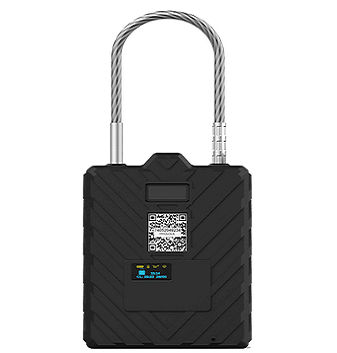

KS G-508 is a kind of GPS tracker device. It is equipped with GPS, GSM module for container real time position tracking. Waterproof IP67 for dust and water resistance, and it is good for outdoor hard environment application. The device also supports LBS data, but only by one BTS (Base Transceiver Station). It can support muti kinds of alarm: low power alarm, dismounting alarm, drop alarm, lock string cut off alarm, unlock alarm, lock alarm, etc.
Share Now:
| Material | Aluminum alloy |
|---|---|
| Shackle | Wire rope, diameter 7mm |
| GSM | support 850/900/1800/1900MHZ |
| LTE (4G) | Support LTE-FDD,LTE-TDD,WCDMA,GSM (Option) |
| RFID Chipset | 13.56MHZ Standard:ISO14443A |
| BT Chipset | BT 5.0 |
| Location | GPS module, precise scope of 10 meters |
| Display | 0.96-inch OLED screen |
| Battery capacity | Li-battery:10000MA Voltage:3.6-4.2V |
| Alert | Anti-break alarm , Anti-cut alarm.Low battery alarm |
| Charging time | Fully charge about 6 hours per time |
| Storage | 2M Flash, >8000 blind spot data stored |
| Charger port | DC5.5 interface (DC5V/3A) |

GT300 Portable GPS Tracker is a powerful GSM/GPS safety phone designed mainly for children/elderly/luggage/pets. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Quad-band GPRS/GSM subsystem of this GPS tracking equipment supports 850/900/1800/1900 MHz. System integration is straightforward as complete documentation is provided for the full-featured function. It supports a wide variety of reports including emergency, geo-fence boundary crossings, low battery, and SOS alarm.
Share Now:
| GSM frequency | 850/900/1800/1900 MHz |
|---|---|
| GPRS | Class 12, TCP/IP |
| Memory | 64Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm GSM1800/GSM1900:30±3Bm |
| Max frequency error | ±0.1ppm |
| GPS chipset | MTK high sensitivity GPS chip |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start≤1sec Avg. cold start≤32sec |
| GSM Frequency | 850/900/1800/1900 MHz |
|---|---|
| Waterproof grad | IP65 |
| Voice monitor range | ≤5 meters |
| Button | 2xSpeed dial, 1xSOS, 1xMODE, 1xPower On/Off |
| Operating Temperature | 450mAh/3.7Vindustrial lithium polymer battery |
| Operating Humidity | 5%~95%,non-dense |
| Working voltage/current | 3.7VDC/50mA |
| Charger voltage/current | 5VDC/1A |
| Operating temperature | -20℃~ 60℃ |
| Battery | 1100mAh/3.7V |
| Standby time | 10 days (Deep sleep mode) |
| Working time | 15 hours (GPS working mode) |
| Calling time | 5.5 hours |
| Dimension | 73.0(L)*45.0(W)*16.0(H)mm |
| Weight | 54g |

GK310 is a portable, compact, high performance 4G GPS Tracker compatible with LTE/WCDMA/GSM network. This easy-to-use GPS tracker features 1.54-inch touch screen, which allows you to operate conveniently. GK310 will let you keep an eye on your children, elderly, or important ones. You never have to worry about losing something, or someone.
Share Now:
| WCDMA | 850/900/1800/2100MHz |
|---|---|
| GSM frequency | 850/900/1800/1900MHz |
| Memory | 512MB RAM+8GB ROM |
| GPRS | Class 12, TCP/IP |
| Max output | GSM 850/900MHz (33dBm ±3dBm) GSM 1800/1900MHz (30dBm ±3dBm) |
| Max frequency error | ±0.1ppm |
| Phase error | RMSPE<5, PPE<20 |
| GPS Chipset | MT6737 |
|---|---|
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | < 10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| TTFF (open sky) | Avg. hot start ≤2sec Avg. cold start ≤35sec |
| Touch screen | 1.54 inch |
|---|---|
| Resolution | 240*240 |
| Battery | 3.8V/1500mAh lithium-polymer battery |
| Max output | >=72 hours (LTE & WIFI work; GPS sleeps) >8 hours (LTE & GPS work) |
| Standby current | ≤14mA (LTE works while GPS sleep) |
| Weight | 81g |
| Dimension | 101.0 x 62.0x 11.0mm |
| LED | Status LED |
| Operating temperature | -20℃ ~+60 ℃ |
| SIM card | nano |
| Charger voltage/current | 5VDC/1000mA |
| Speaker | √ |
| MIC | √ |
| Charge port | USB type-C |
